Frames

showcase frame puts each raw capture inside a window frame (a title bar, rounded corners, a soft shadow) on a background, and writes it to outputs.readme. showcase all runs it after the capture. The same look is used for the portfolio images, the hero banner and terminal clips.

A minimal frame

showcase.config.mjs

export default defineConfig({
  // name, target, shots ...
  frame: {
    style: 'window',
    theme: 'dark',
    background: { type: 'gradient', from: '#0f766e', to: '#1e1b4b' },
  },
  outputs: {
    readme: 'assets/showcase/{lang}/{id}.webp',
  },
});

Those are the defaults, so a config without frame or outputs looks the same. Every key is in the config reference under frame and outputs.

Styles and themes

style	Title bar
'window' (default)	40 px, with the three traffic lights and the title centered.
'minimal'	A thin 28 px bar with the title, no lights.
'none'	No bar and no title: just the rounded screenshot.
'browser'	A 44 px browser toolbar: traffic lights, back, forward and reload, and an address bar showing address.
'windows'	A 32 px Windows title bar: the title on the left, minimize, maximize and close on the right.
'terminal'	A 34 px terminal bar: traffic lights and a tab with a prompt icon and the title in a monospace font.

Each style on Nightjar, the fixture app of the docs gallery. Select one to open the file; the gallery has the config that made each.

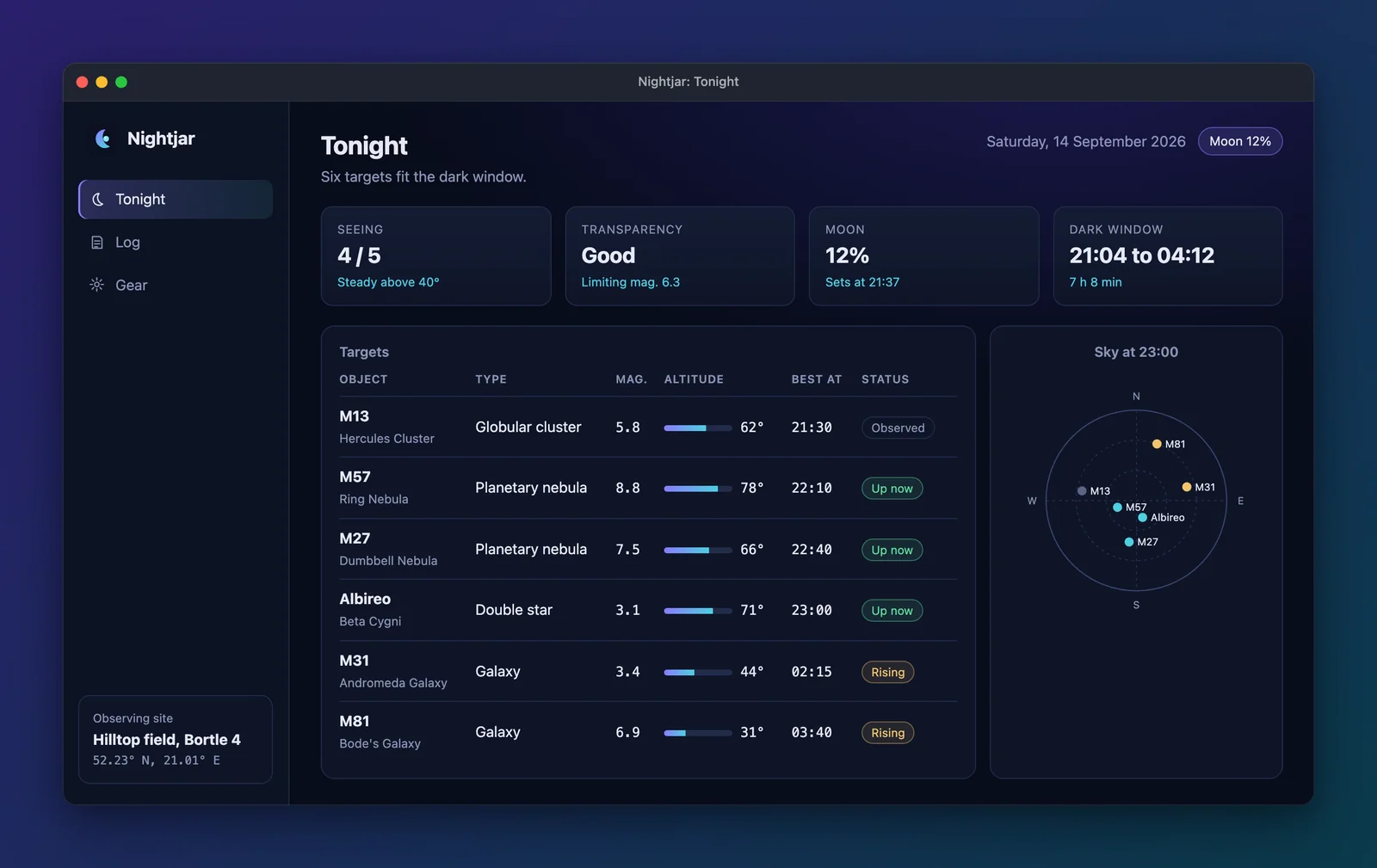

• 'window' (default)
• 'minimal'

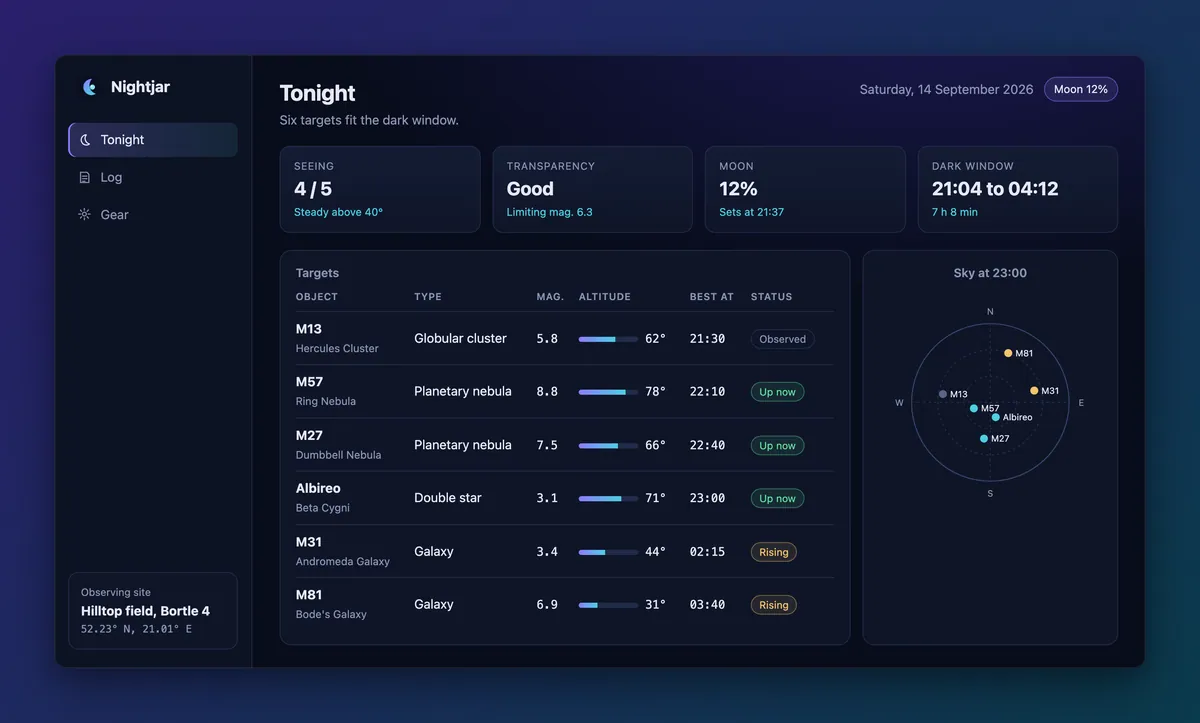

• 'none'
• 'browser'
• 'windows'

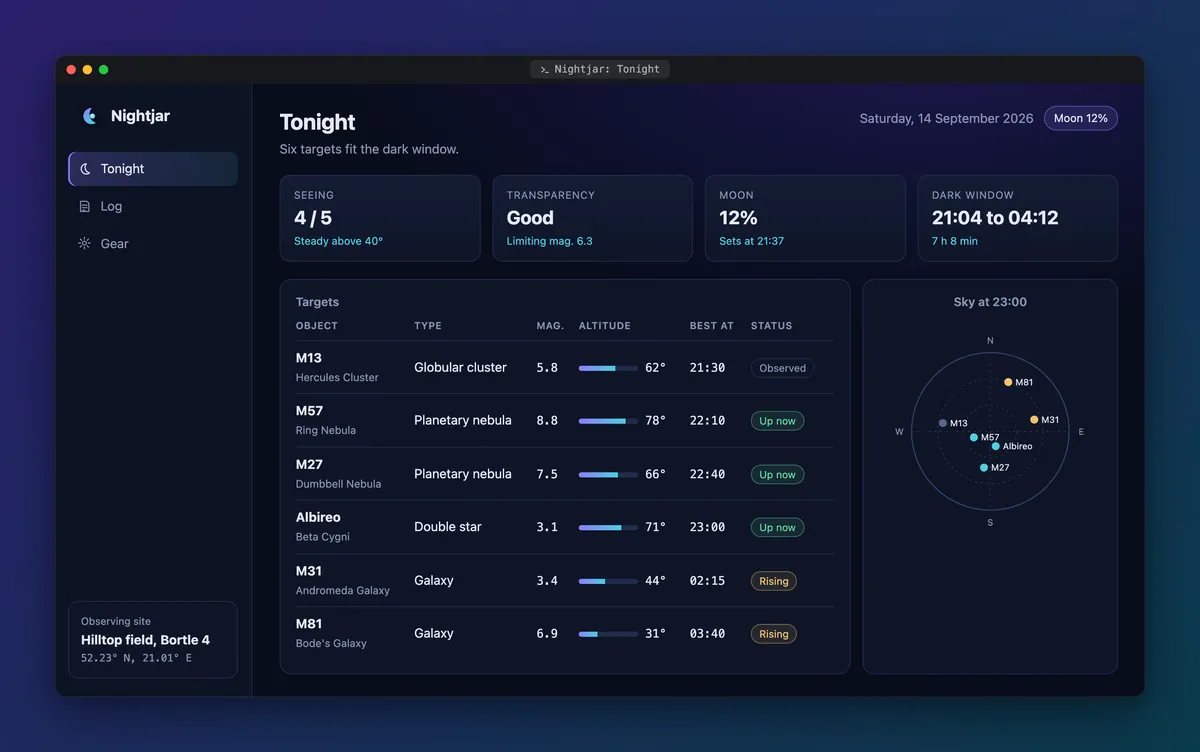

• 'terminal'

theme ('dark' by default, or 'light') sets the title bar’s colors. Pick the one that matches the app, so the bar reads as part of the window.

The browser address bar

address is the text in the browser style’s address bar, '{url}' by default. {url} is the page the shot visits, without http:// or https://: the target url, resolved with the shot’s nav when that is a path or a URL. A shot reached by a click keeps the target url, so most apps will want their own text, such as their public address:

frame: {
  style: 'browser',
  address: 'nightjar.app/{id}',
},

address also takes {name}, {title}, {id} and {lang}. The style has no title text, so title does not show. In cdp mode the page is not known when the frame is drawn, so an address with {url} is an error there; write the address instead. A terminal app has no address, so tty mode refuses the browser style and suggests terminal or window.

The terminal style

terminal works for web apps and terminal apps. In tty mode its bar takes the terminal theme’s background and drops the line under the bar, so the bar and the screen read as one terminal window. In url and cdp mode the bar is a dark (or light) grey.

The gallery’s terminal app in window (the default), terminal and windows:

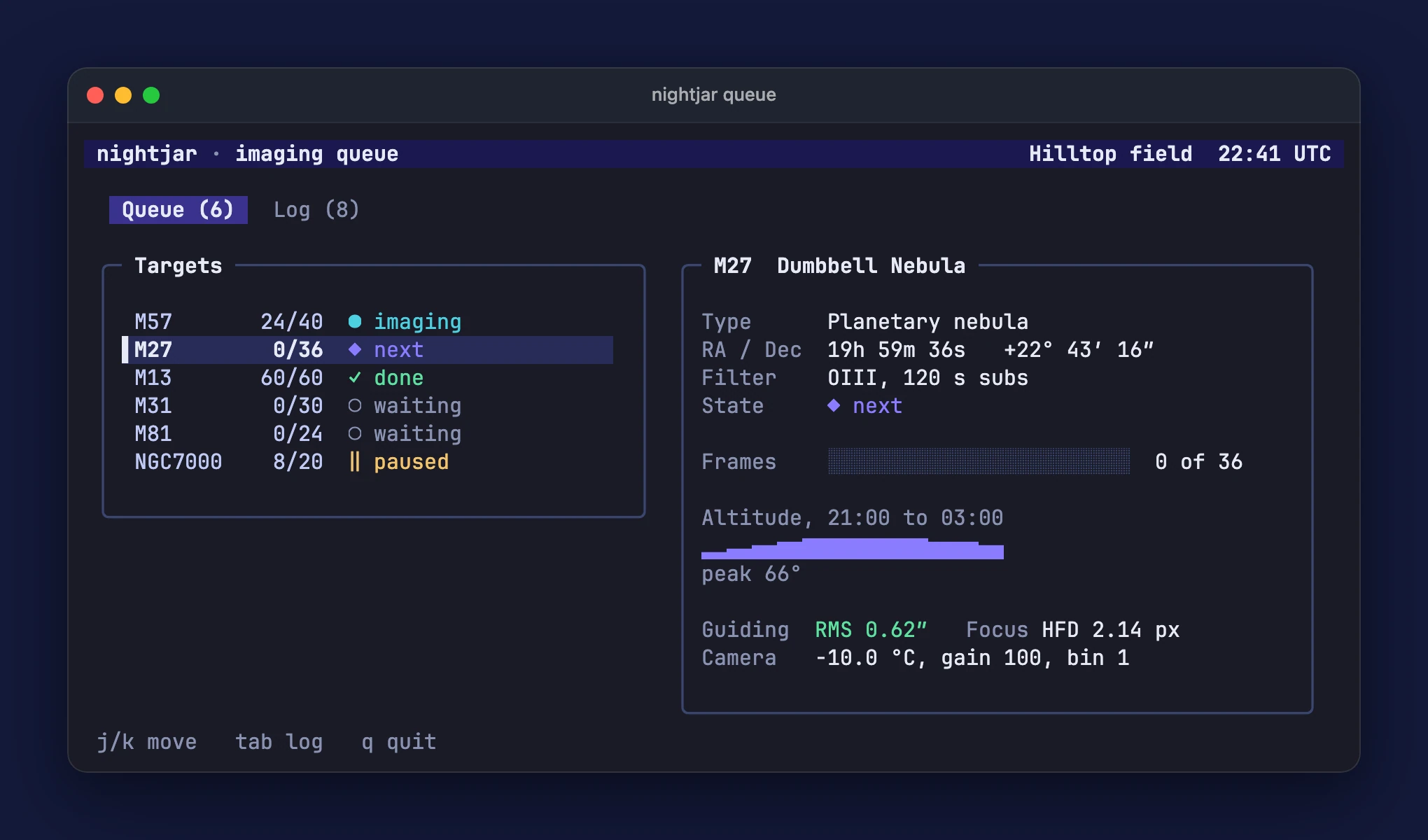

• 'window' (default)

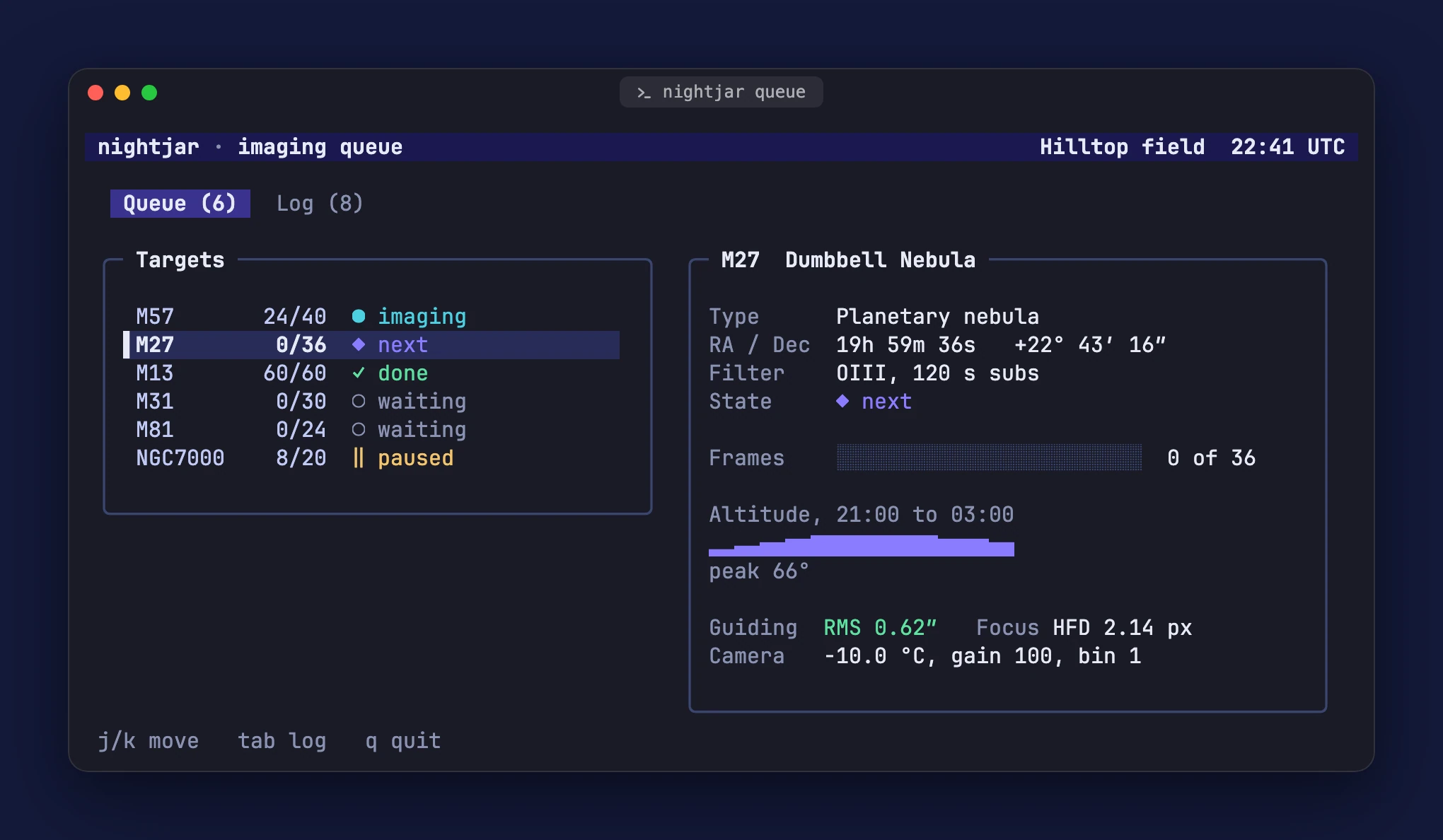

• 'terminal'

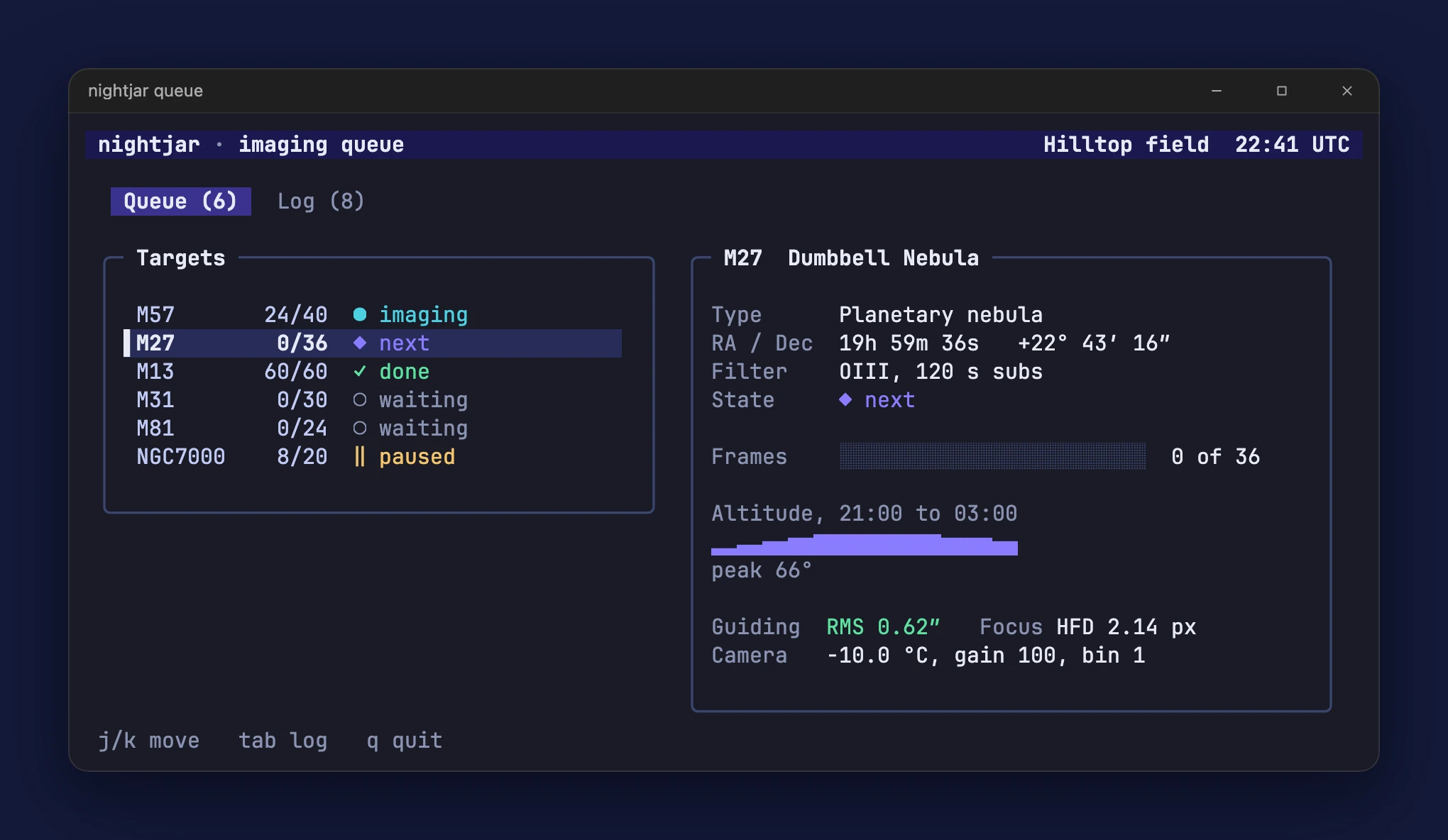

• 'windows'

title is the title bar text, '{name}' by default. It takes the tokens {name} (the config’s name), {title} (the shot’s title), {id} and {lang}, so title: '{name}: {title}' gives “My App: Settings”. title: false hides it and keeps the bar.

Backgrounds

background takes these forms:

background: '#1e1b4b', // any CSS color: a hex, a name, rgb(), hsl(), oklch(), color-mix() ...
background: { type: 'solid', color: '#1e1b4b' },
background: { type: 'gradient', from: '#0f766e', to: '#1e1b4b', angle: 135 }, // angle defaults to 135
background: { type: 'transparent' },
background: { type: 'mesh', colors: ['#0b1026', '#6d28d9', '#0e7490', '#1e3a8a', '#be185d'] },
background: { type: 'dots', color: '#0d1224', dot: 'rgba(255,255,255,0.14)', spacing: 24 },
background: { type: 'noise', from: '#2a1f6b', to: '#0b3b4c', angle: 135, amount: 0.2 },

• mesh takes two to five colors: the first is the base, and the others glow from the top left, top right, bottom right and bottom left corners, in that order.
• dots draws a grid of small dots on color. dot is the dot color (a faint white by default: pick a dark one on a light color) and spacing the distance between dots, 8 to 96 CSS pixels (default 24).
• noise is a gradient like gradient, with a film grain on top. amount (0 to 1, default 0.2) sets how strong the grain is. The grain comes from a fixed seed, so it is the same on every run.

Each form on Nightjar, the fixture app of the docs gallery; the gallery has the config that made each:

• { type: 'gradient' }

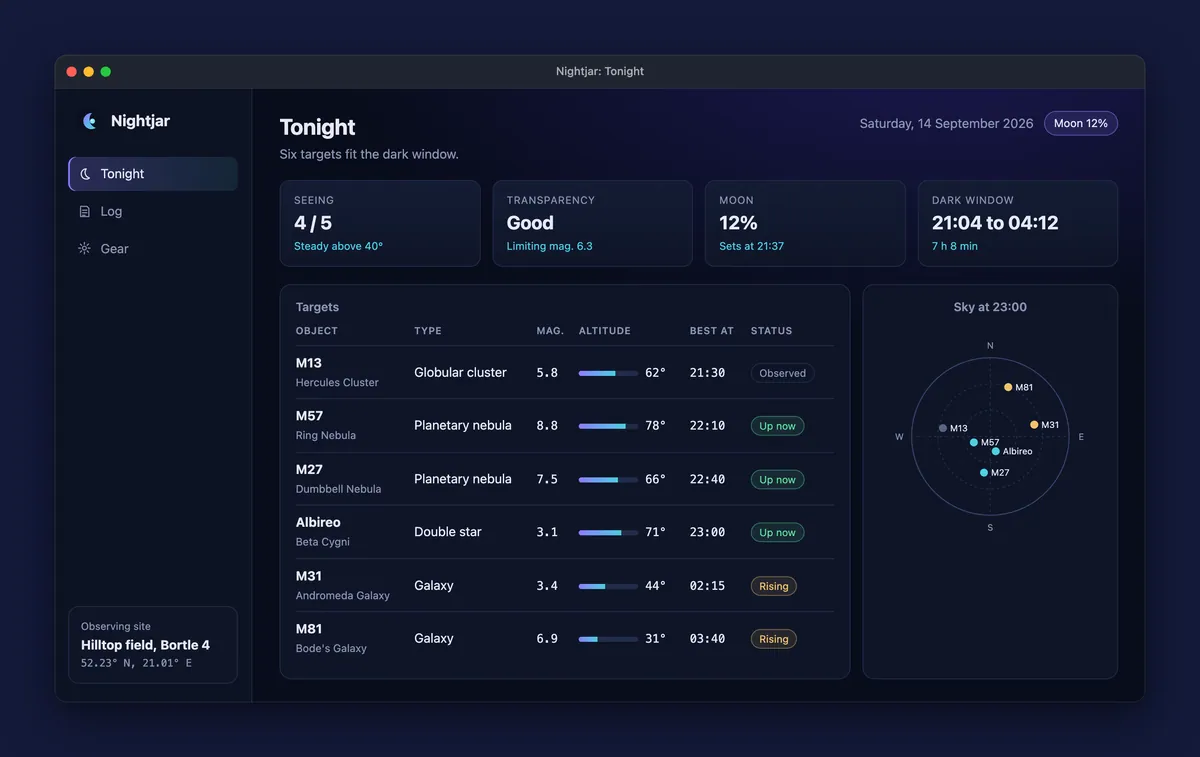

• '#141a3a'

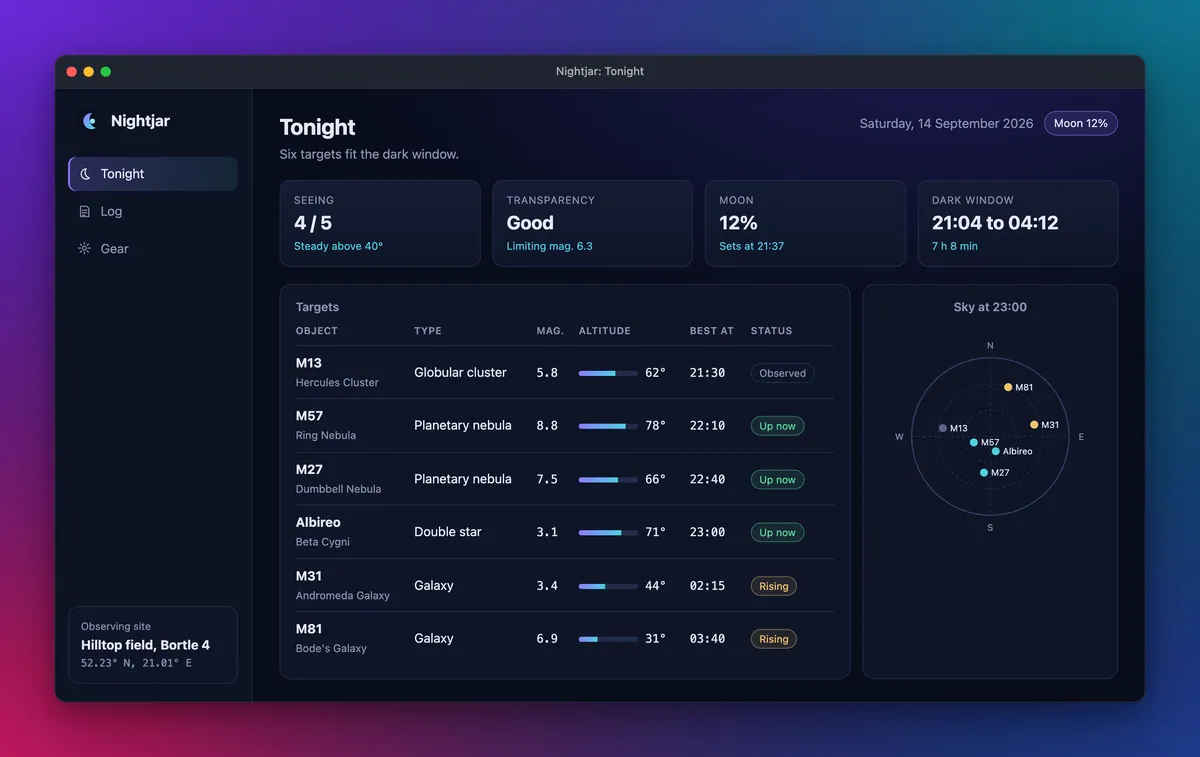

• { type: 'mesh' }

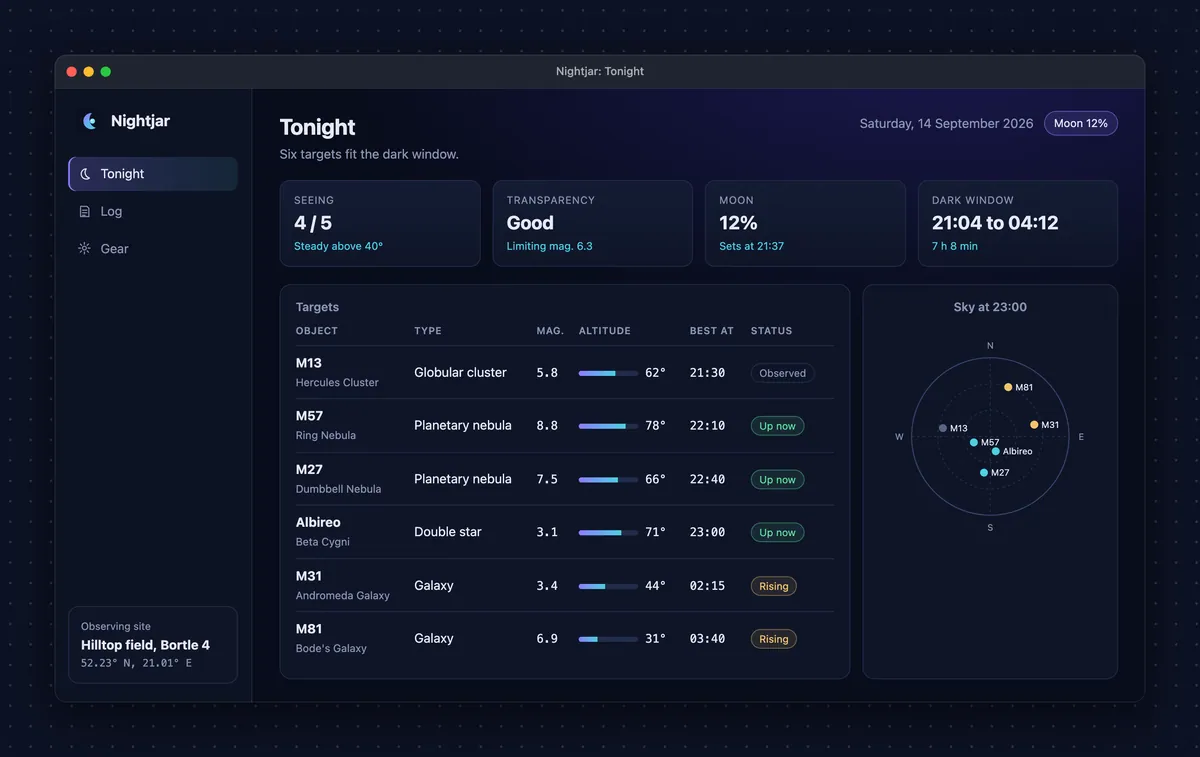

• { type: 'dots' }

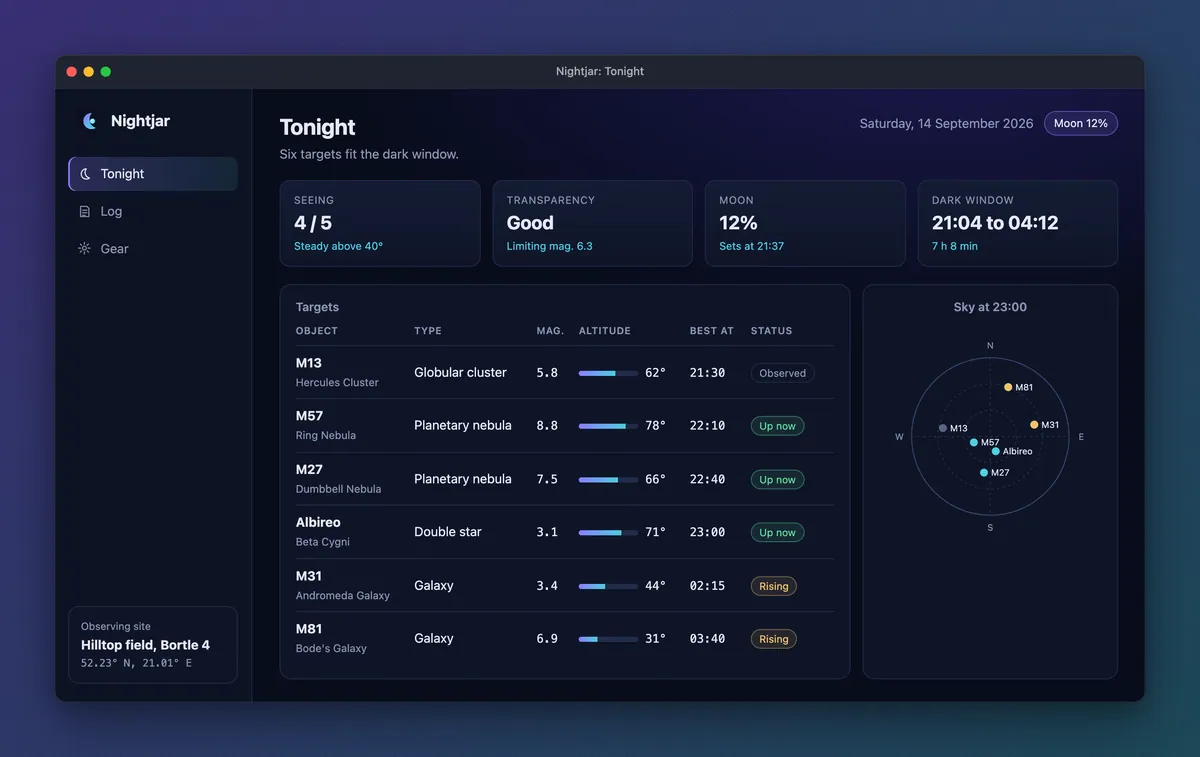

• { type: 'noise' }

The hero’s background takes the same forms.

Colors are checked when the config loads: only color syntax is accepted, so url() and other CSS functions are rejected. A transparent background keeps the alpha channel in both WebP and PNG, so the shadow falls on whatever page the image sits on.

The default is the teal to indigo gradient above. For clips, a solid background keeps the file small: gradients, meshes, dots and grain do not compress.

Spacing, corners and shadow

• padding (default 72) is the space around the window, in CSS pixels.
• radius (default 14) is the window’s corner radius.
• shadow (default true) draws a soft drop shadow under the window.

For a bare screenshot with rounded corners and nothing else, combine style: 'none', background: { type: 'transparent' }, padding: 0 and shadow: false.

Formats and size

The extension of outputs.readme picks the format: .webp (the default) or .png. WebP uses quality (default 90, 1 to 100); PNG is lossless.

Frames render at the capture’s device scale factor, so a framed image keeps every pixel of the capture. A 1440x900 capture at DPR 2 becomes a (1440 + 2 x 72) x (900 + 40 + 2 x 72) CSS pixel image, which is 3168x2168 pixels. That is sharp on a high density screen and heavy in a README: set maxWidth to downscale anything wider (for example maxWidth: 1800). Narrower images are never enlarged.

Tip

maxWidth only applies to README images and clips. Portfolio images have their own exact size, and the hero has its own.

Output paths

outputs.readme is a path template. Its tokens are {lang}, {id} and {slug}:

• {id} is required, so shots never overwrite each other;
• {lang} is required once langs has more than one language;
• the path must end in .webp or .png;
• a relative path resolves against the config’s directory (or root, if you set one).

The raw captures follow the same rules at outputs.raw (default showcase-out/raw/{lang}/{id}.png), which must be a .png. Add showcase-out/ to .gitignore, and commit the framed images.

Portfolio-only configs: outputs.readme: false

The portfolio images and the hero render from the raw captures, not from the README images. A config that only feeds a portfolio can skip the README images:

outputs: {
  readme: false,
  portfolio: { dir: '../portfolio/public/projects/{slug}' },
},

frame then writes nothing and says so, all goes straight from capture to the portfolio export, and readme explains that there is nothing to list.

Running it

showcase frame reads every raw capture first, so a missing one stops the run before a browser starts, with a hint to run showcase capture. --only and --langs limit it to some shots and languages, like capture.

Related

• README table: list the framed images in your README.
• Portfolio: the same frame at an exact size.
• CLI reference: showcase frame.
